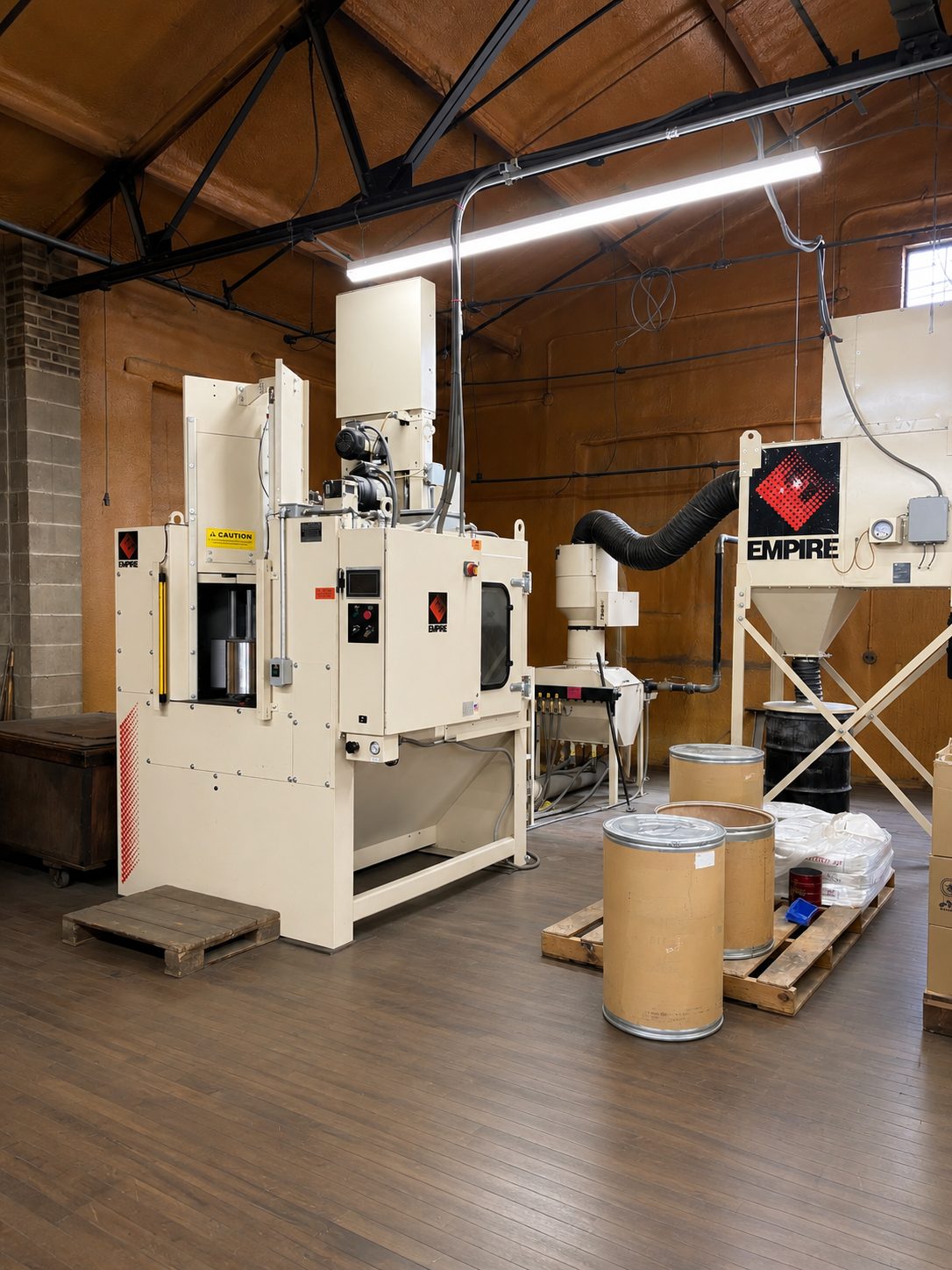

Empire automated suction blast cabinet and dust collection in the Corry Rubber metal preparation room

Rubber to Metal Bonding

Surface preparation and rubber-to-metal bonding are core competencies here, and overmolding is the same discipline applied to a whole part. Both run in-house, from the blast booth through the adhesive line to the press.

Metal preparation · Corry, PA USA

Rubber-to-Metal Bonding is a Core Competency

A significant portion of Corry Rubber's business and operations revolves around our ability to prepare substrates for overmolding: vertically integrated sandblasting, both by hand and automated, and the application of primer and adhesive. That preparation is the step most molders subcontract, and it is the step that decides whether a bond holds.

Our bonding process vulcanizes the elastomer while chemically attaching it to steel, stainless steel, brass, aluminum, or rigid plastics. Done properly the bond outlasts the rubber, so a specimen tears in the elastomer before the joint gives way. Overmolding extends that to housings, inserts, and sub-assemblies, adding grip, sealing, or protection without a secondary assembly step.

Bonding processes

Examples of our rubber to metal bonding processes include:

  • Rubber-encapsulated metal, producing the most economical mechanical bond
  • Chemical bonding, using heat-activated adhesive for bonding during vulcanization or curing
  • Cyanoacrylate bonding of rubber and metal after curing, including secondary operations to assemble

The bond is only as good as the metal under it

Most bond failures are not adhesive failures. They are surface failures. Metal arrives carrying mill oil, rust preventative, and whatever it picked up in handling, and none of that comes off in a wash tank alone. Our metal preparation runs in-house for exactly this reason.

  • Degrease, to remove oils and drawing compound before anything mechanical happens
  • Abrasive blast to a measured profile, so the adhesive has a surface to key into
  • Prime inside the window, before the freshly blasted surface begins to re-oxidize
  • Controlled handling after prep, because a bare fingerprint is a contaminant

That re-oxidation window is the step most often lost when metal preparation is subcontracted, because the parts sit in transit between the blast booth and the adhesive line. Ours runs in-house, on our own metal preparation line.

Adhesive systems

A bonded assembly usually needs two coats doing two different jobs: a primer that keys to the metal, and an adhesive that co-vulcanizes with the elastomer. Both are matched to the polymer, the substrate, and the cure the part will see.

  • Primer selected for the substrate, steel, stainless, brass, aluminum, or plastic
  • Adhesive matched to the compound, since what bonds NBR will not necessarily bond EPDM
  • Film thickness controlled, too thin fails to wet the surface and too thick becomes the weak layer
  • Cure schedule verified on the actual assembly rather than inferred from the compound

How we verify the bond

We pull bonded specimens to ASTM D429 in our own accredited lab on a 20-ton hydraulic press and report where the specimen failed alongside the load. The failure mode tells you more than the load does.

We also read the adhesive film on the failed surface under a Keyence digital microscope. A film that went on too thin or too thick is often what identifies the failure mode.

ModeWhere it failedWhat it means
RThe rubber toreThe bond was stronger than the elastomer. This is the result you want.
RCAt the adhesive layerAdhesive, coating thickness, or cure. A process problem, usually recoverable.
CMAt the metal surfaceSurface preparation. Contamination, wrong profile, or the primer went on too late.

A high load with a CM failure is a worse outcome than a lower load with an R failure, and a supplier who reports strength without mode cannot tell you why a part failed in service. Full method detail is on the ASTM D429 page.
