Grommets
A rubber ring that lines a hole so a cable, hose, or shaft can pass through a panel without chafing on the edge. It also seals the opening against dust and water, and dampens vibration travelling along whatever passes through it.
- What we need: panel thickness, hole diameter, and what is passing through
- Common materials: EPDM for weather, neoprene for balanced service, silicone for heat
- Typical trap: sizing to the cable and forgetting the panel thickness, which sets the groove
Bumpers and stops
A part whose job is to absorb an impact or limit how far something travels. A door stop, a hood bumper, an end-of-stroke cushion on a machine. It converts motion into heat instead of noise and broken parts.
- What we need: how much energy per hit, how often, and whether noise matters
- Common materials: natural rubber for resilience, neoprene where oil or weather is present
- Typical trap: choosing hardness by feel. A bumper that feels right by hand is often far too soft for the load

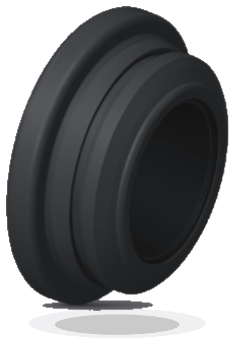

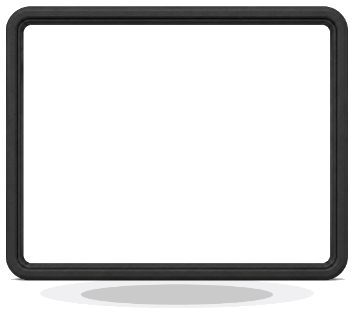

Gaskets and seals
A flat or profiled seal clamped between two surfaces that are bolted together. The clamp load does the sealing work, so the compound has to hold its shape under sustained clamp load for years without taking a permanent set.
Sealing is the other half of the same job, and it covers more than flat gaskets: O-rings, custom-profile seals, lid and vent seals, diaphragms, and umbrella valves. As a custom rubber seal manufacturer we mold the seal to the groove and the service rather than fitting your joint to a catalog cross-section, and the compound is chosen for the fluid, the temperature, and how long the joint has to stay closed.
- What we need: flange size and surface finish, bolt load or torque, and the media
- For a seal rather than a gasket: the groove or gland dimensions, the pressure, and whether it moves in service
- How long it has to hold: compression set is what decides whether a seal still seals in year five
- Common materials: EPDM for water and waterworks, NBR for oil, silicone for food and heat
- Typical trap: over-torquing a gasket that was specified too soft, which extrudes it out of the joint
Bushings
A rubber sleeve between two metal parts that lets them move relative to each other while carrying load, isolating vibration, and staying quiet. Common in suspensions, linkages, and pivots.
- What we need: the load, the motion it has to allow, and the operating temperature
- Often bonded: many bushings are rubber vulcanized to an inner and outer metal sleeve
- Typical trap: assuming a bushing is a wear part. Correctly specified, it should outlast the assembly
Mounts and isolators
A part that supports a machine or component and stops its vibration reaching the structure around it, or the other way round. Sizing these is an engineering calculation rather than a catalogue lookup, because the answer depends on the weight, the running speed, and how much isolation you need.
- What we need: supported weight, machine speed, number of mounts, and temperature
- We have a calculator for this, and an engineer who will check the answer
- Typical trap: a mount that is too stiff isolates nothing, and one too soft lets the machine walk

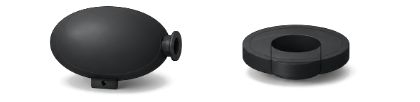

Bladders, diaphragms, and boots
Thin-walled flexible parts that separate two spaces, hold a volume, or protect a moving joint. Expansion-tank bladders, pump diaphragms, dust boots over a shaft, the bending-neck sheaths on an endoscope.
- What we need: the pressure or the motion, the media on each side, and the cycle life expected
- Wall thickness consistency is usually the hard part, and it is something we hold to tight control
- Typical trap: specifying a material for the media and overlooking flex fatigue at the fold

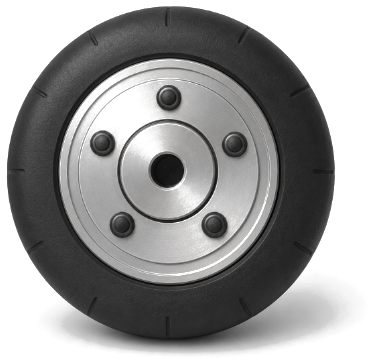

Rollers, wheels, and coated metal
Metal with rubber bonded to the outside, so the part grips, cushions, or runs quietly. The bond matters more than the rubber here, because a coating that separates has failed regardless of how good the compound was.
- What we need: the core dimensions, the load, the surface it runs against, and the speed
- Bonded in-house, with the bond verified to an accredited method
- Typical trap: treating the bond as an afterthought when it is the thing that fails first
What we need from you, in one list
Every entry above names what we need for that part. Pulled together, this is the whole list, and you will not have all of it on day one. Send what you have and we will work out the rest with you.
- What the part does, and what is going wrong if something already is
- The environment: fluids or chemicals it touches, temperature range, indoors or outdoors
- The loads: weight supported, pressure held, energy per impact, or motion allowed
- How long it has to last, and how often it cycles
- Size and fit, however you have it: a drawing, a sketch, a photograph, or the old part itself
- Annual volume, even as a rough range, because it decides the molding process and the tooling
- Anything it has to comply with: FDA, NSF, USP, a customer spec, or an ASTM D2000 call-out
Not sure which one yours is?
Send a photograph, a worn part, or a description of what is going wrong. We reverse-engineer parts with no drawing regularly, and we would rather have a conversation than a completed form.
